Overview#

DataLab may be controlled remotely using the XML-RPC protocol which is natively supported by Python (and many other languages). Remote controlling allows to access DataLab main features from a separate process.

From an IDE#

DataLab may be controlled remotely from an IDE (e.g. Spyder or any other IDE, or even a Jupyter Notebook) that runs a Python script. It allows to connect to a running DataLab instance, adds a signal and an image, and then runs calculations. This feature is exposed by the cdlclient.SimpleRemoteProxy class.

From a third-party application#

DataLab may also be controlled remotely from a third-party application, for the same purpose.

If the third-party application is written in Python 3, it may directly use cdlclient.SimpleRemoteProxy as mentioned above. From another language, it is also achievable, but it requires to implement a XML-RPC client in this language using the same methods of proxy server as in the cdlclient.SimpleRemoteProxy class.

Data (signals and images) may also be exchanged between DataLab and the remote client application, in both directions.

The remote client application may be run on the same computer as DataLab or on different computer. In the latter case, the remote client application must know the IP address of the computer running DataLab.

The remote client application may be run before or after DataLab. In the latter case, the remote client application must try to connect to DataLab until it succeeds.

Supported features#

Supported features are the following:

Switch to signal or image panel

Remove all signals and images

Save current session to a HDF5 file

Open HDF5 files into current session

Browse HDF5 file

Open a signal or an image from file

Add a signal

Add an image

Get object list

Run calculation with parameters

Some examples are provided to help implementing such a communication between your application and DataLab:

See module: cdlclient.tests.remoteclient_app

See module: cdlclient.tests.remoteclient_unit

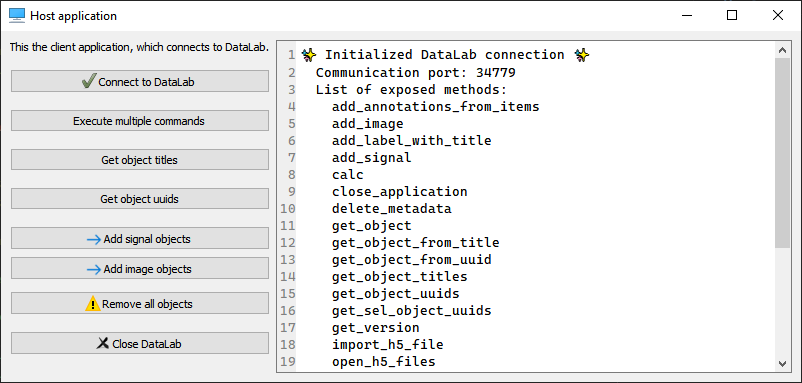

_images/remote_control_test.png — Screenshot of remote client application test (`cdlclient.tests.remoteclient_app`)#

Example#

Here is an example in Python 3 of a script that connects to a running DataLab instance, adds a signal and an image, and then runs calculations (the cell structure of the script make it convenient to be used in Spyder IDE):

# -*- coding: utf-8 -*-
"""
Example of remote control of DataLab current session,
from a Python script running outside DataLab (e.g. in Spyder)

Created on Fri May 12 12:28:56 2023

@author: p.raybaut
"""

# %% Importing necessary modules

# NumPy for numerical array computations:
import numpy as np

# DataLab remote control client:
from cdlclient import SimpleRemoteProxy as RemoteProxy

# %% Connecting to DataLab current session

proxy = RemoteProxy()

# %% Executing commands in DataLab (...)

z = np.random.rand(20, 20)
proxy.add_image("toto", z)

# %% Executing commands in DataLab (...)

proxy.toggle_auto_refresh(False)  # Turning off auto-refresh
x = np.array([1.0, 2.0, 3.0])
y = np.array([4.0, 5.0, -1.0])
proxy.add_signal("toto", x, y)

# %% Executing commands in DataLab (...)

proxy.compute_derivative()
proxy.toggle_auto_refresh(True)  # Turning on auto-refresh

# %% Executing commands in DataLab (...)

proxy.set_current_panel("image")

# %% Executing a lot of commands without refreshing DataLab

z = np.random.rand(400, 400)
proxy.add_image("foobar", z)
with proxy.context_no_refresh():
    for _idx in range(100):
        proxy.compute_fft()

Additional features#

For simple remote controlling, cdlclient.SimpleRemoteProxy may be used. For more advanced remote controlling, the cdl.RemoteCDLProxy class provided by the DataLab (cdl) package may be used.

See DataLab documentation for more details about the cdl.RemoteCDLProxy class (on the section “Remote control”).

Connection dialog#

The DataLab Simple Client package provides a connection dialog that may be used to connect to a running DataLab instance. It is exposed by the cdlclient.widgets.ConnectionDialog class.

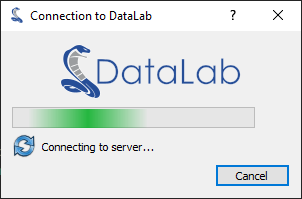

_images/connect_dialog.png — Screenshot of connection dialog (`cdlclient.widgets.ConnectionDialog`)#

Example of use:

# Copyright (c) DataLab Platform Developers, BSD 3-Clause license, see LICENSE file.

"""
DataLab Remote client connection dialog example
"""

# guitest: show

from guidata.qthelpers import qt_app_context
from qtpy import QtWidgets as QW

from cdlclient import SimpleRemoteProxy
from cdlclient.widgets import ConnectionDialog


def test_dialog():
    """Test connection dialog"""
    proxy = SimpleRemoteProxy(autoconnect=False)
    with qt_app_context():
        dlg = ConnectionDialog(proxy.connect)
        if dlg.exec():
            QW.QMessageBox.information(None, "Connection", "Successfully connected")
        else:
            QW.QMessageBox.critical(None, "Connection", "Connection failed")


if __name__ == "__main__":
    test_dialog()

Get object dialog#

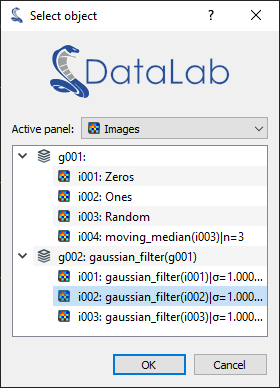

The DataLab Simple Client package provides a dialog that may be used to get an object from a running DataLab instance. It is exposed by the cdlclient.widgets.GetObjectDialog class.
